Products Description
This Manhole Inspection Camera features an advanced optical system with a powerful 25x optical zoom and 12x digital zoom for precise observation over long distances. It is suitable for inspection of all types of pipes with diameters ranging from 120 to 2000mm, and can quickly obtain HD images of the inside of the pipe. The system can be operated flexibly over a wide range of pipe diameters, making it particularly suitable for inspection of municipal drainage networks, industrial pipelines and large culverts. Its sophisticated zoom system allows the operator to clearly observe the details of the inner wall of the pipe and quickly identify cracks, leaks and other problems, significantly improving inspection efficiency. With its easy operation and clear imaging, this Manhole Inspection Camera equipment is the professional choice for pipeline maintenance and inspection work, effectively reducing maintenance costs and improving work efficiency.
Product Parameters
1. Camera Head
|
Pipe Diameter |
120-2000mm |
|
CCD Type |
1/3'' COMS |
|
Resolution |
1920*1080, 2.0 Megapixel |
|
Zoom |
25×Optical Zoom, 12× Electrical Zoom |
|
Tilt Electrically |
Up: 45°, Down: 45° |
|
Main Brightness |
0.05LUX@F1.6 |
|
Combined Brightness |
Main Light: 10w*2 LED; Neutral White/warm White; CCT 5000k Auxiliary Light: 3W*2 LED; neutral white/warm white; CCT 3700K |
|
Precision Range |
0.05m-70m |
|
Wireless Transmission Mode |
802.11A/N + 2.4G |
|
Work Temperature |
-10°C ~ 60°C |
|
Waterproof Level |
IP68 |
|
Anti-crash Telescope U-type Probe |
The Height Is Adjustable (Height Range: 70cm～120cm) |
|
Battery Capacity |
2600MA |
2. 10-Inch Tablet Control Unit
|
Model Name |
Tablet PC |
|
RAM |
6G |
|
ROM |
128G, Support Sd (tf Card), Extend Storage 256gb (Optional) |
|
Battery Capacity |
7000mAh |
3. Telescopic Rod
|
Retracted Length |
1.58cm |
|
knob Number |
6 Knobs (Weight: 2.5kg) |
| Others |
The Length Can Be Customized, The Longest Can Be Reach 12m |
4. Wireless Repeater
| Output |
DC5V 1A |
|
Others |
Give An Intersection Of Multiple Wireless Equipments |
5. Charger
|
Output |
3 Pcs 16.8V 1A Charge Connector, 2 Pcs USB 5V 2.1A, Each Charge Connector is Designed Separately, No Effect on Each Other |
|
Size |
203*145*76mm |
|
Material |
Aluminum |

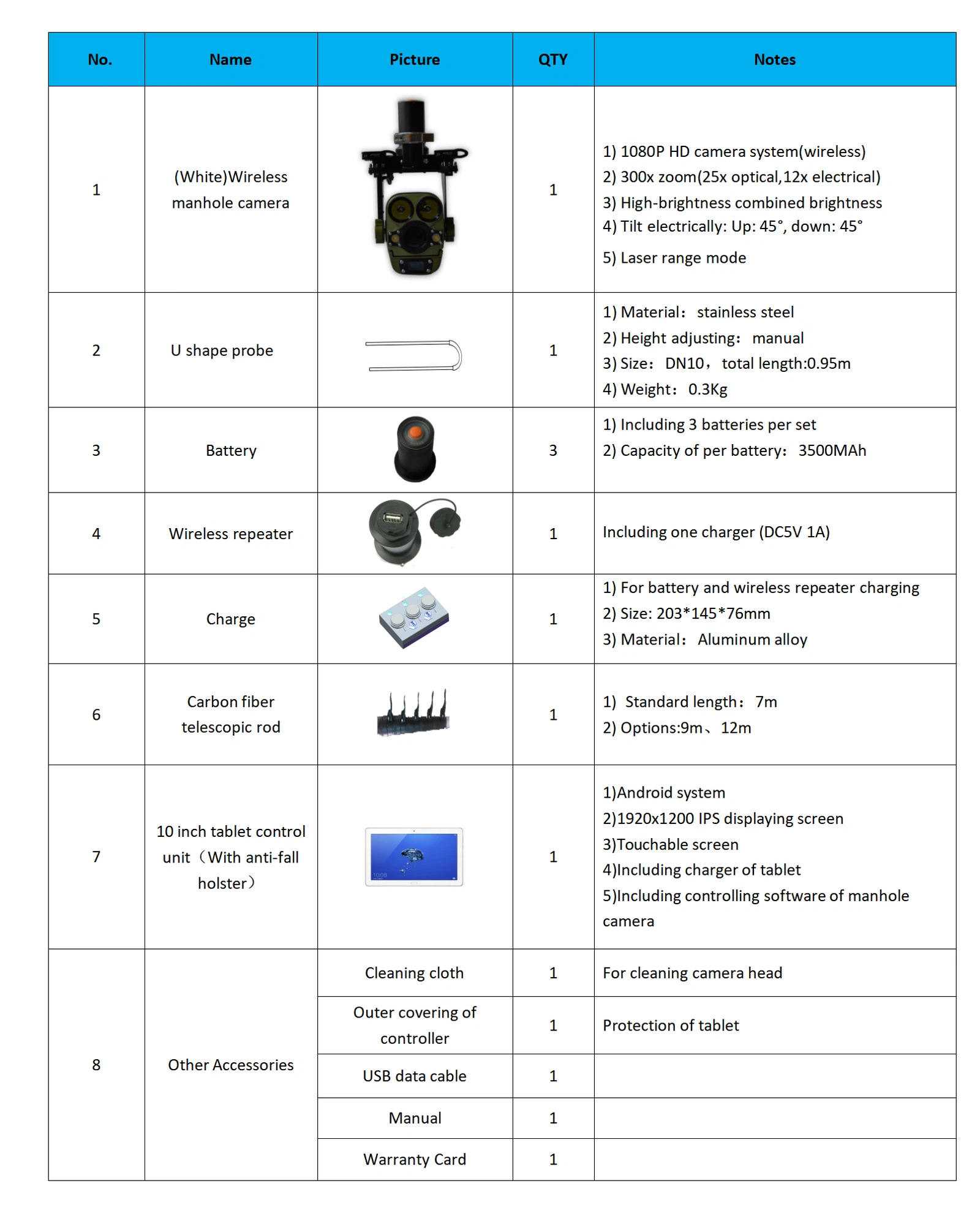

Packing List

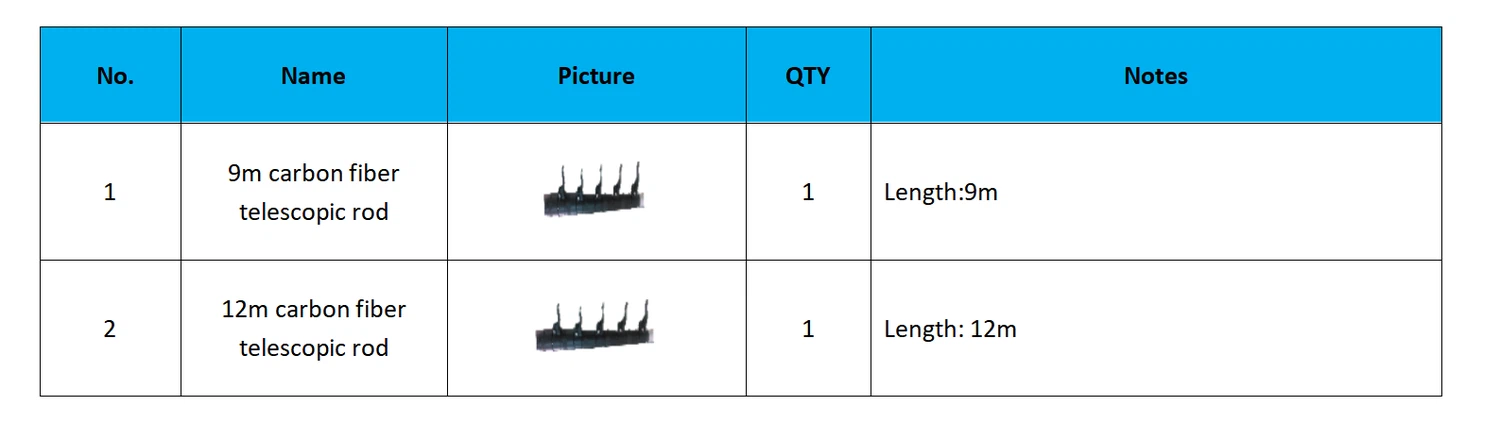

Optional Parts List

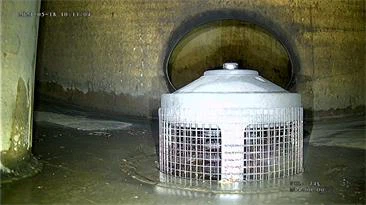

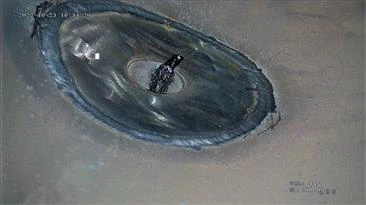

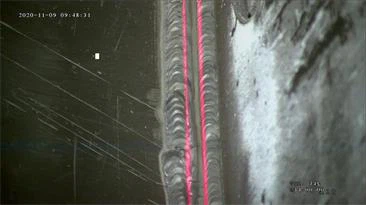

Application Areas
