Products Description

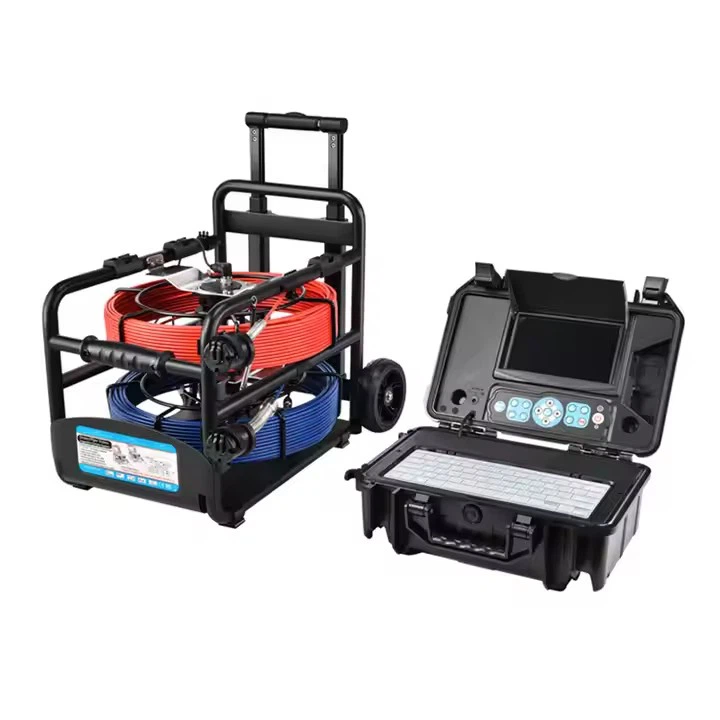

One compact system with a sophisticated design, equipped with two cable reels and two high-performance camera heads. The innovation of this Sewer Video Camera Inspection system is that users can operate cameras of different specifications on the same device simultaneously to meet diverse inspection needs. Specifically, this sewer camera supports two specifications of camera heads, 23mm and 14mm or 18mm, allowing operators to freely choose the appropriate camera for inspection according to the size and inspection needs of the pipe.
This design is particularly suitable for occasions where inspection tasks need to be performed in various pipe types and environments. The 23mm camera is suitable for larger diameter pipes, while the 14mm and 18mm cameras are more suitable for smaller pipes or narrow spaces that are difficult to reach. With this design, users can flexibly switch between different cameras without changing equipment, greatly improving work efficiency and adaptability.
Typical Configurations:
1. 5.2mm rod cable with 23mm head + 4.8mm rod cable with 14mm/18mm camera head
2. 6.8mm rod cable with 23mm head + 4.8mm rod cable with 14mm/18mm camera head
Both 23mm head and 18mm head are 1080P AHD.
Features
23mm camera head
1080P full HD
10.1-inch HD LCD screen
14mm/18mm optional
high-light LEDs lighting adjustable
4.8mm/5.2mm/6.8mm
push rod cable
Cable length
20m - 60m
Built-in 512Hz transmitter optional
Recording Video
meter counter
self leveling optional
Products Parameters

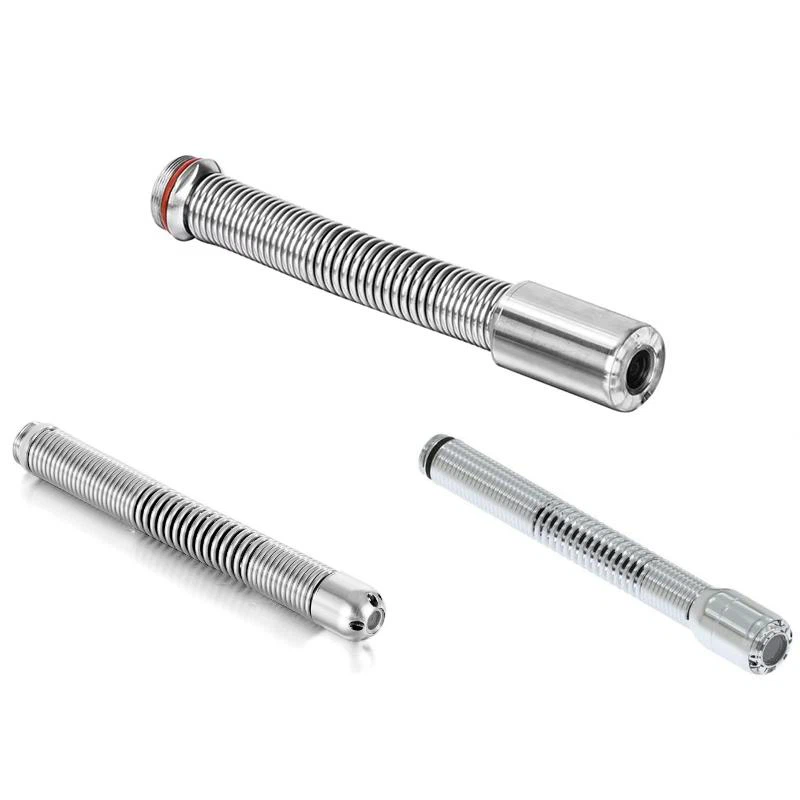

Part 1. Camera Head
|
14mm Camera Head |
|
|
Camera Size |
Φ14mm*21mm |
|
View Angle |
90° |
|
Focus Distance |
6~8cm (approx) |
|
Lighting |
Built-in 4*LED(White) |
| 18mm Camera Head | |
|
Camera Size |
Φ18mm*29mm |
|
Resolution |
AHD 1920*1080 |
| View Angle | 130° |
|
Lighting |
Built-in 9*LED(White) |
| 23mm Camera Head | |
|
Camera Size |
Φ23mm*51mm |
| Resolution | AHD 1920*1080 |
| View Angle |
130° |
|
Lighting |
Built-in 15*LED(White) |

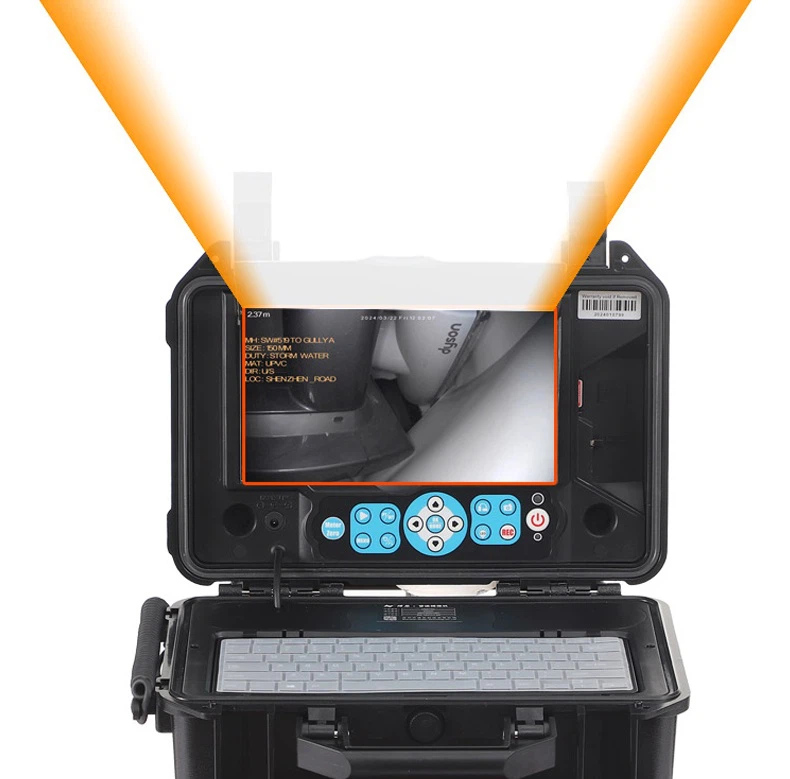

Part 2. DVR Control Unit
| Screen Size | 10-inch Super bright HD Color LCD screen |
| Resolution |
1024*600 Pixels |
|
Video Resolution |
AHD 1080P / CVBS D1 |
|
Video Encoding |
H.264 |
| Output |
TV and Audio Output |
|
External Memory |
Support SD Memory Card Up To 64GB |
| Mirror and Flip |
Support Image Mirror, And Flip |
|
Language |
Simplified Chinese, English, Traditional Chinese, Japanese, Korean, Russian, German, French, Italian, Spanish, Portuguese, Thai, Finnish, Swedish |

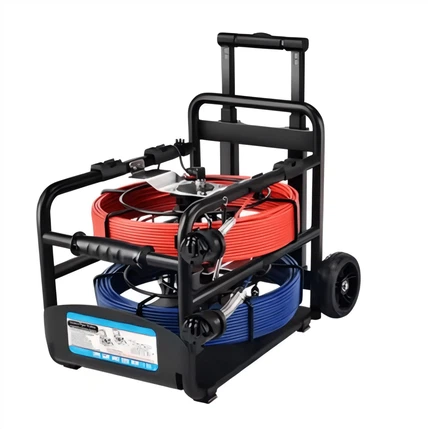

Part 3. Dual Cable Reel
| Length |
20/30/40M fiberglass rod cable for 5.2/6.8mm cable + 20/30/40/60M fiberglass rod cable for 4.8mm cable |
| Dia. | 5.2mm/6.8mm + 4.8mm |
| Cable Material |
Fiberglass Covered By PP |
Products Description
1 * 23mm Camera Head + 1 * 14mm/18mm Camera Head
1 * 20/30/40m Cable Wheels + 20/30/40/60m Cable Wheels
2 * Plastic Guides(Dia.80mm and Dia.46mm) + 1 * Ball Guide(Dia.28mm)
1 * Remote Control
1 * Screw Driver
1 * Power Adapter
1 * Car Charger
2 * Connection Cables
1 * Screws and Camera Head Waterproof Seal
1 * Waterproof Control Box with Monitor Mounted
Warranty and After-Sales Policy
We provide a one-year quality guarantee, lifetime maintenance for our cameras. Failures due to misuse, abuse, or normal wear and tear are not covered.
1. Immediate Defects: If you encounter any defects in the camera right after receiving it, please capture a video of the issue and send it to us. We'll promptly provide you with a new replacement part at no additional cost.
2. Used Cameras: For cameras that have been in use and later developed issues within the warranty period, we have two options for you:
Option 1: Send us the defective part, and we'll repair it for you under the one-year warranty. There might be a repair fee if new materials are needed for replacement. There won't be a repair fee if no new materials are required. Normally, the customer covers the shipping cost to send us the broken part, and we'll return it at our expense.
Option 2: Purchase a new part. We understand that cameras are used in demanding applications and environments, subject to normal wear and tear. Hence, we provide comprehensive instructions in video and PDF formats, along with all the necessary spare parts for daily repairs. Our sewer cameras are designed with modular components, enabling users to conduct their repairs using simple hand tools easily. All components are plug-and-play and can be readily replaced.
Remarks:
1. Once customers identify the problem, please take some photos/videos and send them to us via email info@bestdertech.com OR WhatsApp +(86)-186-6531-5008 or other methods.
2. After our technicians review the photos/videos, we will supply: Spare parts and technical help.
3. In some situations, if the customers themselves can't solve the problem, customers can send damaged parts back to us.
4. To save shipping costs, we suggest you order some extra parts for future use and send back all faulty parts at one time.
FAQ
Q: Can we provide OEM and ODM services for our customers?
A: Absolutely, we offer customization services to meet the specific needs of our customers.
Q: How can we guarantee the quality of our products?
A: All our products have a strict quality control process and are 100% tested before delivery.
The products must undergo an aging test for at least 48 hours to ensure good quality.
Q: What is the warranty period for our products?
A: We offer a one-year warranty, quality guarantee, and lifetime maintenance.
Q: Will we receive technical support after the purchase?
A: Surely, we have a dedicated technical support team available to assist you with any issues or queries.
Q: Are our products certified to any international standards?
A: Yes, our products are certified to ISO, CE, and other relevant standards, ensuring safety and reliability.
Q: What logistics services do we provide?
A: We provide a variety of logistics services such as sea freight, air freight, express delivery, and so on.
