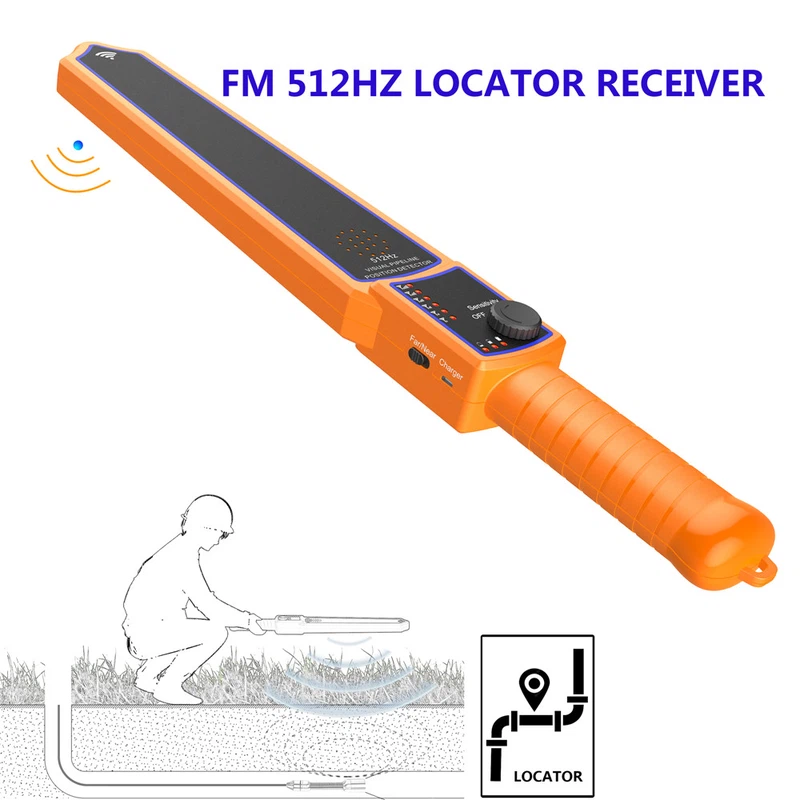

The Pipe Camera 512Hz Locator Receiver is a state-of-the-art device designed for locating and tracing buried utilities, cables, and pipes with precision and ease. Operating at a frequency of 512Hz, it ensures high sensitivity and reliability, making it ideal for a range of underground detection applications in industries such as construction, civil engineering, and utility maintenance.
512HZ Receiver: High-Precision Locator for Underground Applications

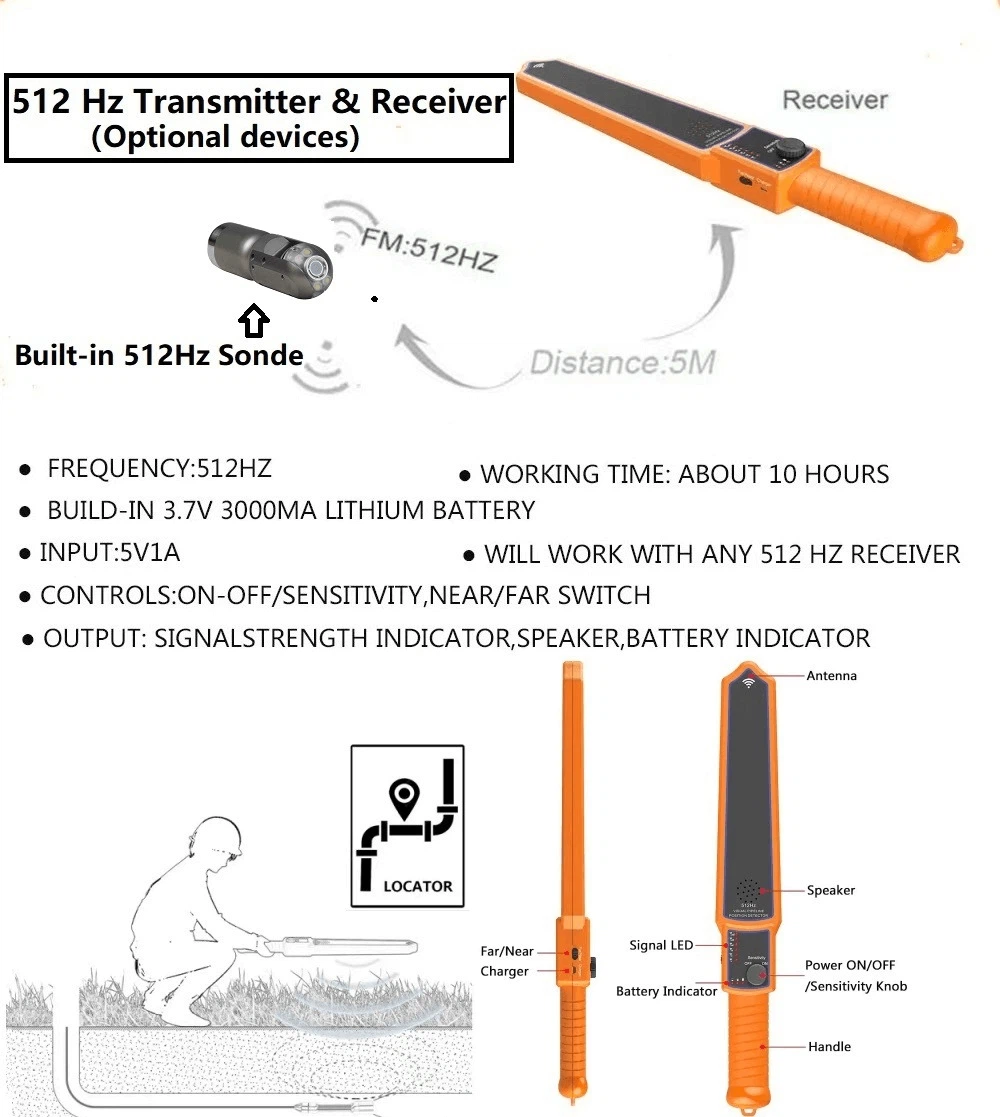

The 512HZ Receiver is engineered for use with a 512HZ transmitter, forming a complete underground detection system. It excels in locating various underground objects, such as pipelines, cables, and ducts, by detecting the signal transmitted through these utilities. This system is widely used for site assessments, utility mapping, and in-depth subsurface surveys.
Key Features
1. High Precision Detection:
The 512Hz frequency allows for clear, accurate detection of underground utilities, even in areas with high signal interference.
2. Ergonomic Design:

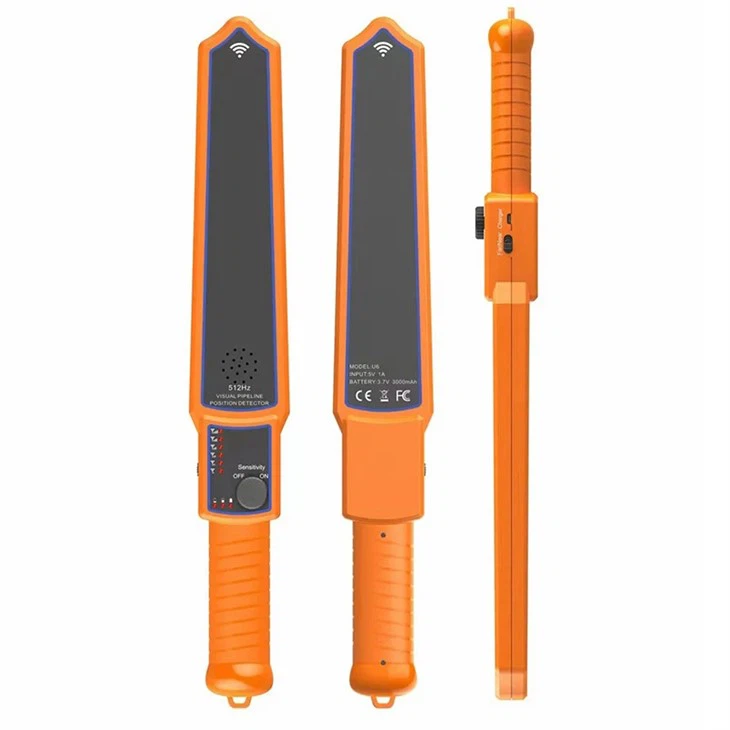

Lightweight and easy to handle, the receiver is designed for user comfort during extended use. The compact, rugged build ensures durability even in harsh environmental conditions.
3. Audible and Visual Indicators:
The receiver provides both audible sounds and visual indicators (e.g., LED display) to guide the operator towards the target. The signal strength increases as the receiver gets closer to the source, providing real-time feedback for precise location mapping.
4. Adjustable Sensitivity:
With adjustable sensitivity, the receiver can be fine-tuned for different depths and types of utilities, providing optimal performance across a variety of environments.
5. Multi-Mode Operation:
Multiple modes allow for flexibility in different detection tasks, such as peak mode for maximum signal strength or null mode for pinpoint accuracy.
6. Battery Life:
The receiver is equipped with a long-lasting rechargeable battery, providing extended operational time for prolonged fieldwork.
Applications
The 512HZ Receiver is an essential tool in numerous industries for detecting buried utilities and ensuring the safe excavation of underground infrastructure. Common applications include:
**Utility Detection & Mapping**: Used to locate electrical cables, gas pipelines, water mains, and telecommunications lines to avoid accidental damage during excavation.
**Construction Projects**: Integral in pre-construction surveys to map out existing underground utilities before digging, reducing the risk of disruption or damage.
**Maintenance and Repair**: Helps in pinpointing exact locations of utility damage or leaks, speeding up repairs and reducing the need for costly excavation.
**Environmental Surveys**: Assists in locating monitoring wells, drainage systems, or other subsurface environmental infrastructure.
**Archaeological and Geophysical Surveying**: Used in non-invasive exploration of underground structures, providing crucial information for researchers and surveyors.
Tips for Use and Selection
1. Understand the Frequency: The 512HZ frequency is particularly effective in environments where other common frequencies (e.g., 33kHz or 8kHz) may face interference or be unsuitable. It's perfect for locating utilities with minimal disruption.
2. Select the Right Sensitivity: Adjust the sensitivity of the receiver to match the depth and size of the target utility. Higher sensitivity is ideal for deeper targets, while lower sensitivity can be used for shallow utilities.
3. Weather Considerations: While the 512HZ receiver is rugged, extreme weather conditions (such as heavy rain or extreme heat) can affect performance. Always ensure the receiver is properly protected when used in harsh environments.
4. Regular Calibration: To maintain accuracy, ensure regular calibration of both the receiver and transmitter. This ensures optimal signal detection and reliability over time.
5. Complementary Tools: For best results, pair the 512HZ receiver with a compatible transmitter and other underground detection tools, like cable locators, to enhance the overall detection process.
Why Choose Our 512Hz Receiver?
1. Enhanced Accuracy:
With precise location detection and clear signal feedback, our 512Hz Receiver ensures accurate results, reducing the risk of misidentification or missed targets.
2. Versatility:
Ideal for a wide range of underground applications, from utility mapping to site surveys, this receiver is a versatile tool suitable for various industries.
3. Ease of Use:
Intuitive controls and ergonomic design make it simple for operators of all experience levels to use effectively, even in challenging field conditions.
FAQ
Q: Can this locator detect PVC pipes?
A: Yes, it works effectively with PVC, metal, and concrete pipes.
Q: How deep can it detect underground pipes?
A: The locator can detect pipes up to 10 meters underground, depending on soil conditions.
Q: Is it compatible with all pipe inspection cameras?
A: Yes, it is compatible with all pipe inspection camera systems.
Q: Can the device be used outdoors in wet conditions?
A: Yes, it is water-resistant and suitable for outdoor pipe detection jobs.
Q: How long does the battery last?
A: Up to 8 hours of continuous use per full charge.
Contact Us
For more information about the 512Hz locator or to request a demonstration, please contact us at info@bestdertech.com or call our service hotline (+86)-186-6531-5008, our team of experts is ready to assist you in choosing the right equipment for your underground detection needs. Whether you're in construction, utilities, or maintenance, we provide tailored solutions to help you work smarter and more efficiently.
