Products Description

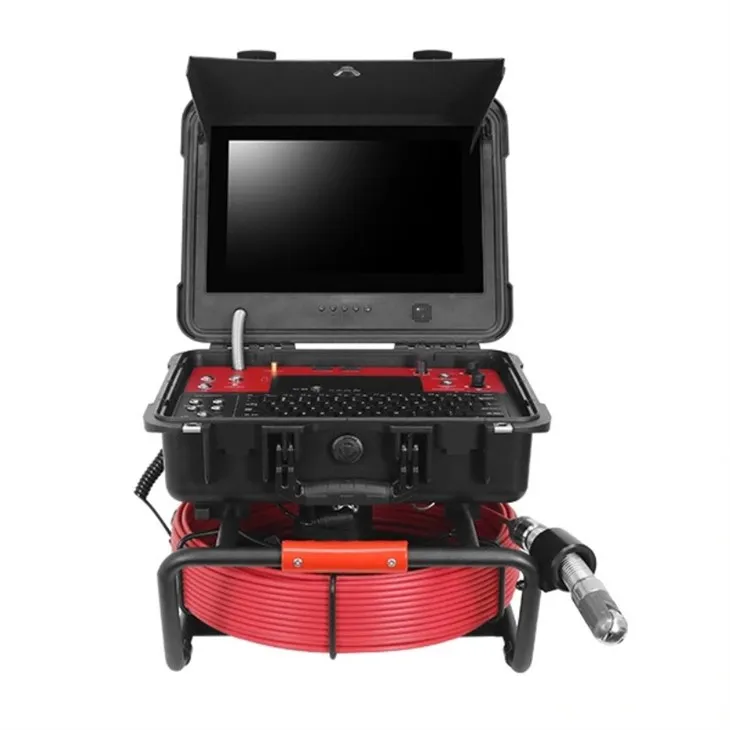

This Plumbing Inspection Camera is a HD endoscopic device designed for pipeline inspection with a 360° rotating camera head for a full range of Pan 360° and Tilt 180° viewing angles. Equipped with 33mm HD waterproof IP68 camera head, it is able to work stably in harsh environments. Equipped with 13-inch HD IPS LCD screen with 1920*1080 resolution, providing clear image display. The digital metre counter function and manual focus function (near and far focus) ensure accurate detection and image clarity. 4Pcs high brightness LEDs can be adjusted according to the need of brightness, and the built-in 512HZ transmitter enhances the signal transmission ability. All-in-one design makes the device easy to carry and operate. It's widely used in construction, municipal engineering, industrial maintenance and other fields, it is ideal for pipeline inspection and maintenance.
The specific features of the Plumbing Inspection Camera are as follows:
1. 360° rotation Camera Head, Pan 360° Tilt 180°
2. 1/3'' CMOS, 2.0MP pixel HD camera head, waterproof IP68
3. Adjustable focus function
4. 13-inch HD IPS LCD screen, 1920*1080 resolution
5. DVR control box with audio, video recording, and photography function
6. USB wireless keyboard real-time typewriting
7. Built-in 8800mA Li-ion battery inside, support uint working more than 6 hours
8. Digital meter counter function, error is less than 1%
9. All-in-One Design, Easy to Carry, Easy to use
Product Parameters

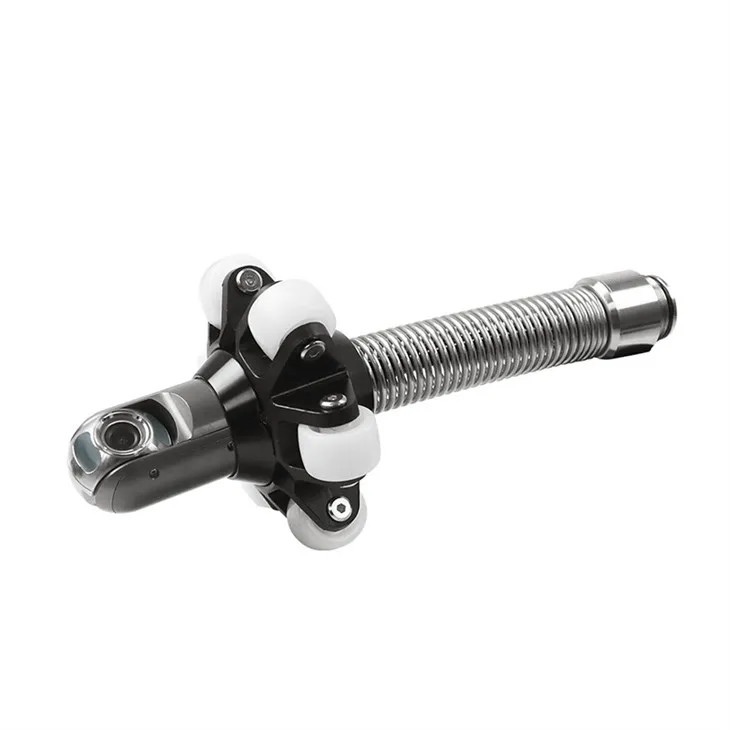

Part 1. 33mm Pan Tilt Rotation FHD Camera Head
| Camera Head Size | Φ33mm*226mm |
| Sensor | 1/3" CMOS |
| Resolution | 2.0MP Pixel Full HD |
| Waterproof Level | IP68, Up To 5 Bar |
| View Range | 120° |
| Rotation | Pan 360°, Tilt 180° |
| Focusing | Manual Focus Function ( Far Focus And Near Focus) |
| Light | 4pcs High Light LED Lighting Adjustable |
| Transmitter | Built-in 512HZ Transmitter Included |

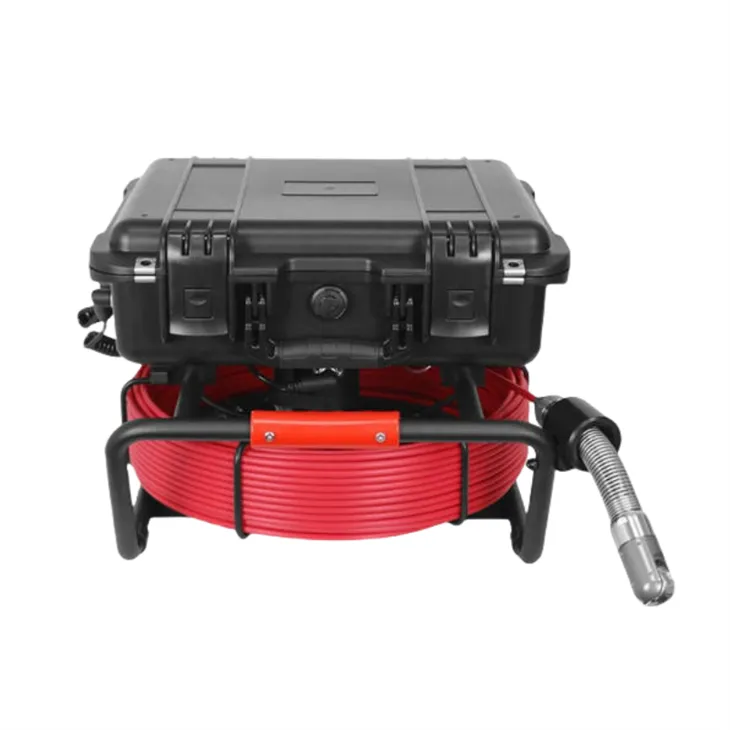

Part 2. Cable Reel
| Cable Diameter | Φ7mm |
| Cable Length | 20m to 50m |
| Reel Size | 35*9cm |
| Cable Material | Fiberglass Push Rod Cable |
| Meter Counter | Digital Meter Counter |

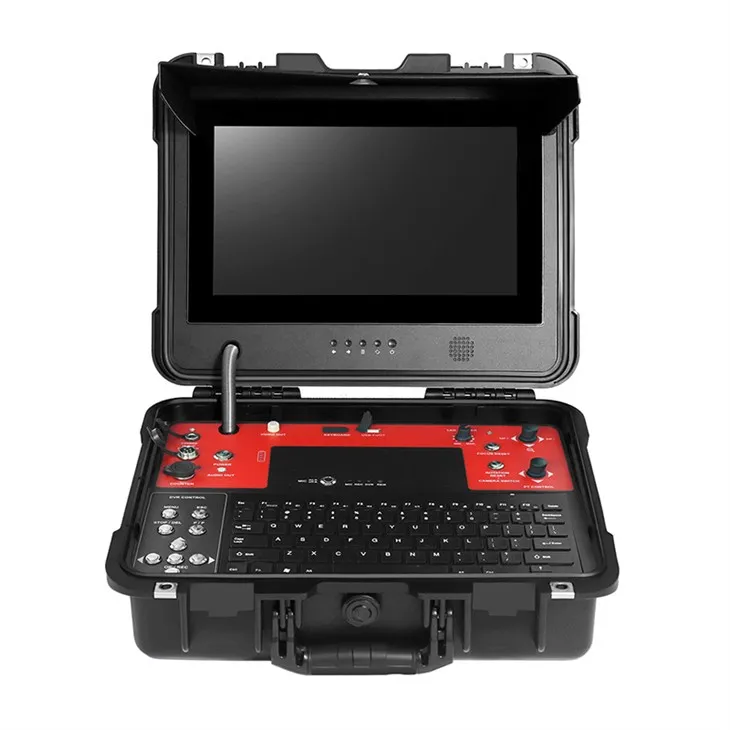

Part 3. 13Inch DVR Control Unit
| Screen Size | 13" HD IPS LCD Screen |
| Resolution | Waterproof Panel 1920*1080 Resolution |
| Waterproof Level | Waterproof Keys & Waterproof Panel |
| Function | 1080P Format Video, Audio, And Photography Function DVR |
| Keyboard | USB Wireless Keyboard Real-Time Typewriting |
| Input | Video input port (Compatible with different camera heads) |
| Meter Counter | Digital Meter Counter Function, Displayed on the Screen |
| Battery | Built-in 8800mA Rechargeable Li-ion Battery Pack |
The differences between the four Plumbing Inspection Cameras:
All four products each equipped with a 33mm PT FHD camera head. However, the key differences are their control boxes and cable reels. For more details, please refer to the table below:
| products |
 |
 |
 |
 |
| Model number | BSD-P33D7S | BSD-P33Y7 | BSD-P33D9 | BSD-P33D7 |
| camera head | 33mm | 33mm | 33mm | 33mm |
| Control Box | 13"HD IPS LCD Screen | 8"HD IPS LCD Screen | 13"HD IPS LCD Screen | 13"HD IPS LCD Screen |
| Cable diameter | Φ7mm | Φ7mm | Φ9mm/Φ11mm | Φ7mm |
| cable length | 20m To 50m | 20m To 40m | 60m To 150m | 60m |
| Wheels | no | no | yes | no |
| Cable Reel | small | small | big | small |
Application Areas
The Plumbing Inspection Camera is a versatile solution for a variety of applications:
**Municipal Pipeline Network**: Used in the inspection and maintenance of urban sewers, water supply pipeline networks, etc.
**Industrial Pipeline**: Applied to the internal inspection and maintenance of various industrial pipeline systems.
**Sewage Drainage**: For inspection and maintenance of sewage drainage systems.
**Supply Water Network**: For inspection and maintenance of water supply systems.
**Chimney Inspection**: For inspection and maintenance of the chimney interior.
Application
Can be Used For Industrial Pipeline, Sewage Drainage, Chimney Inspection, Underground Pipe, Municipal Maintenance......
Tips for Use and Selection
**Pipe Types and Sizes**: Different pipes (e.g. sewers, drains, heat pipes, etc.) have different sizes and shapes. When selecting a camera, you need to make sure that it can accommodate the diameter and curvature of the pipe.
**Environmental Conditions**: The environmental conditions inside the pipe (e.g. temperature, humidity, corrosiveness) will affect the choice of camera.
**Resolution and Image Quality**: High-resolution cameras provide clearer images, making it easier to identify details and defects inside the pipe. Selection should be based on the inspection needs to determine the required resolution.
**Lighting System**: Pipelines are often poorly lit, so a lighting system with sufficient intensity (e.g. LEDs) is required to ensure a clear image.
**Viewing Angle and Flexibility**: The range and flexibility of the camera's viewing angle (e.g., the ability to tilt, and rotate) will affect the comprehensiveness and accuracy of the inspection.
Service Introduction
Our Service Processes
Should you require further assistance, please feel free to reach out to us at any time. Email: info@bestdertech.com
Pre-sales Consultancy
1
>>
Confirmation of order
2
>>
Production
3
>>
Multi-Channel Shipping
4
>>
Confirmation of receipt
5
>>
After-sale Services
6
Packing List
FAQ
Q: Do we provide product training?
A: Yes, we can provide training services for product use and maintenance.
Q: Do we accept OEM/ODM orders?
A: Yes, we accept OEM and ODM orders.
Q: What is our production capacity?
A: We have advanced production lines and strong production capacity to meet large orders.
Q: Do we provide product certification services?
A: Yes, we can assist customers with product certification.
Q: What is our order processing?
A: Our order processing process includes order confirmation, production arrangement, quality inspection and logistics.
